# LED Indications

Please refer to the table below to know Gateway's network & working status.

### 4GW- E

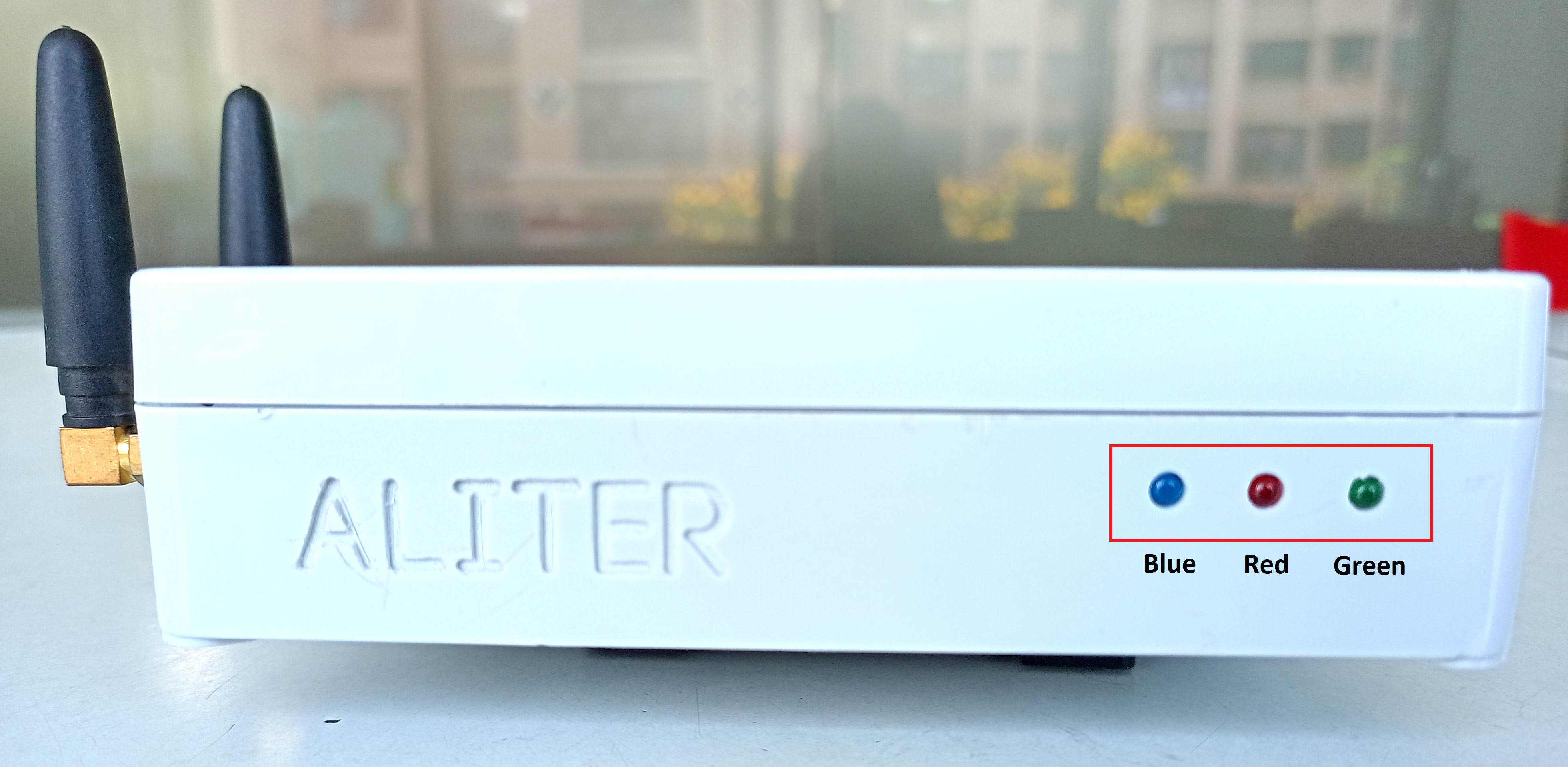

<div align="left"><figure><img src="https://1313992628-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FdTvSz7jpW1e3wAaLdma4%2Fuploads%2F3pPgntC5C7mfcJHDQQTm%2F1.png?alt=media&#x26;token=30e18ece-ac8f-41a0-9da6-260a8e391d0a" alt="" width="563"><figcaption><p>4GW-E with LED Indication</p></figcaption></figure></div>

<table data-full-width="true"><thead><tr><th>WiFi/Ethernet/4G</th><th>MQTT(s)/HTTP(s)</th><th>Blue</th><th>Red</th><th>Green</th></tr></thead><tbody><tr><td>Connected</td><td>Connected</td><td>ON</td><td>Blink</td><td>ON</td></tr><tr><td>Connected</td><td>Disconnected</td><td>ON</td><td>Blink</td><td>Blink</td></tr><tr><td>Disconnected</td><td>Disconnected</td><td>ON</td><td>Blink</td><td>OFF</td></tr></tbody></table>

### 4GW-D

<div align="left"><figure><img src="https://1313992628-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FdTvSz7jpW1e3wAaLdma4%2Fuploads%2FrtONiVF742KtnOShrUUW%2F2%20copy.png?alt=media&#x26;token=81a1e0ef-586d-425b-8a72-4ce8f2b6e837" alt="" width="563"><figcaption><p>4GW-D LED</p></figcaption></figure></div>

<table data-full-width="true"><thead><tr><th>WiFi/Ethernet/4G</th><th>MQTT(s)/HTTP(s)</th><th>LED </th></tr></thead><tbody><tr><td>Connected</td><td>Connected</td><td>White</td></tr><tr><td>Connected</td><td>Disconnected</td><td>Pink &#x26; White</td></tr><tr><td>Disconnected</td><td>Disconnected</td><td>Pink &#x26; Blue</td></tr></tbody></table>
